YW-L6-80 PET Jar Blow Moulding Machine(Up to 0.75L, Max Neck 65MM, 4500-5000BPH/H)
- Customized
- Higher Jar Quality
- Enery Saving
- Direct connection with Wide Mouth Preform Production Line
YW-L6-80 PET Jar Blow Moulding Machine(Up to 0.75L, Max Neck 65MM, 4500-5000BPH/H) description

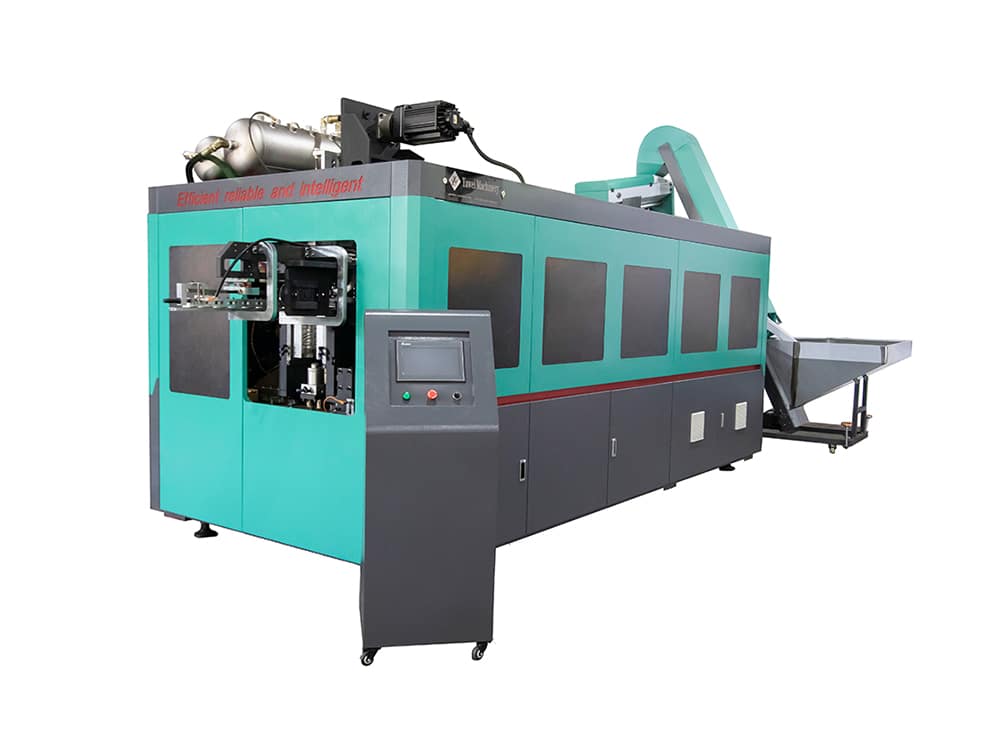

YW-L6-80 PET Jar Blow Moulding Machine
| TYPE | ITEM | YW-L6-80
| YW-L2-130
| YW-L2-152
| YW-L4-130
|
|---|---|---|---|---|---|
| CONTAINER | Cavity Qty | 6 | 2 | 2 | 4 |
| Output | 4500-5000BPH | 1800-2200BPH | 1600-2000BPH | 3400-3600BPH | |
| Max.Container Volume | 0.75L | 2.5L | 4L | 2.5L | |
| Pitch Distance | 80mm | 130mm | 150mm | 130mm | |
| Max Neck Diameter | 65mm | 100mm | 125mm | 100mm | |
| Max.Container Diameter | 70mm | 120mm | 140mm | 120mm | |
| Max.Container Height | 250mm | 350mm | 350mm | 350mm | |
| ELECTRICAL SYSTEM | Lamp Qty | 36 pcs | 32pcs | 60pcs | 40pcs |
| Max.Heating Powe | 54 kw | 48kw | 90kw | 60kw | |
| Installation Power | 66kw | 56kw | 99kw | 72kw | |
| Actual Power Consumption | 25-30kw | 20-25kw | 30-35kw | 25-30kw | |
| AIR SYSTEM | Operating Pressure | 7kg/cm2 | 7kg/cm2 | 7kg/cm2 | 7kg/cm2 |
| Low Pressure Air Consumption | 1600Ltr/min | 1600Ltr/min | 1600Ltr/min | 1600Ltr/min | |
| Blowing Pressure | ≤30kg/cm2 | ≤30kg/cm2 | ≤30kg/cm2 | ≤30kg/cm2 | |
| CHILLER | 10P | 5P | 5P | 10P | |
| MACHINE | Machine Dimension | 5.2×2.1×2.4(m) | 4.2×1.8×2.4(m) | 4.7×2.1×2.4(m) | 5.2×2.1×2.4(m) |
| Machine Weight | 7.0T | 3.0T | 4.5T | 4.0T |
Company Introduction
Technology innovation is Yawei’s eternal tenet. Continuous improvement and genuine professionalization of Yawei PET Jar Blow Moulding Machine,are what we have been chasing while extreme precision, stability, higher bottle, high speed, quality,energy saving,and high efficiency are what we live upon. Meanwhile,we are to satisfy the customers with perfect after-sales service.Yawei Machinery will always, together with you,create a better future with Yawei PET Jar Blow Moulding Machine .
Quality Control
Rigid enterprise criteria and manufacturing processes to make superior quality.
The normative quality monitor system of PET Jar Blow Moulding Machine plays a key role for Yawei PET Jar Blow Moulding Machine to satisfy customers and occupy a position in the market.
We have established the data analysis and tracking system for those critical parts and components in PET Jar Blow Moulding Machine, such as the electrical, mechanical parts,pneumatic components, servo motors and so on. Producing high quality PET Jar Blow Moulding Machine has been the primary working principle of every staff of Yawei Machinery.
